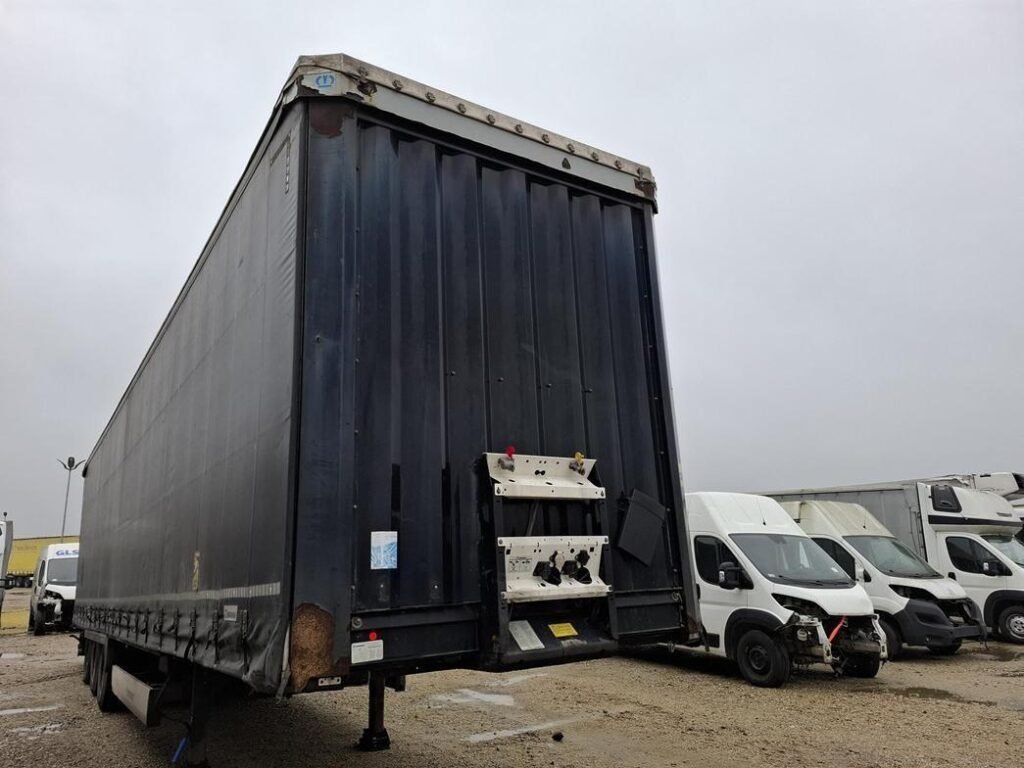

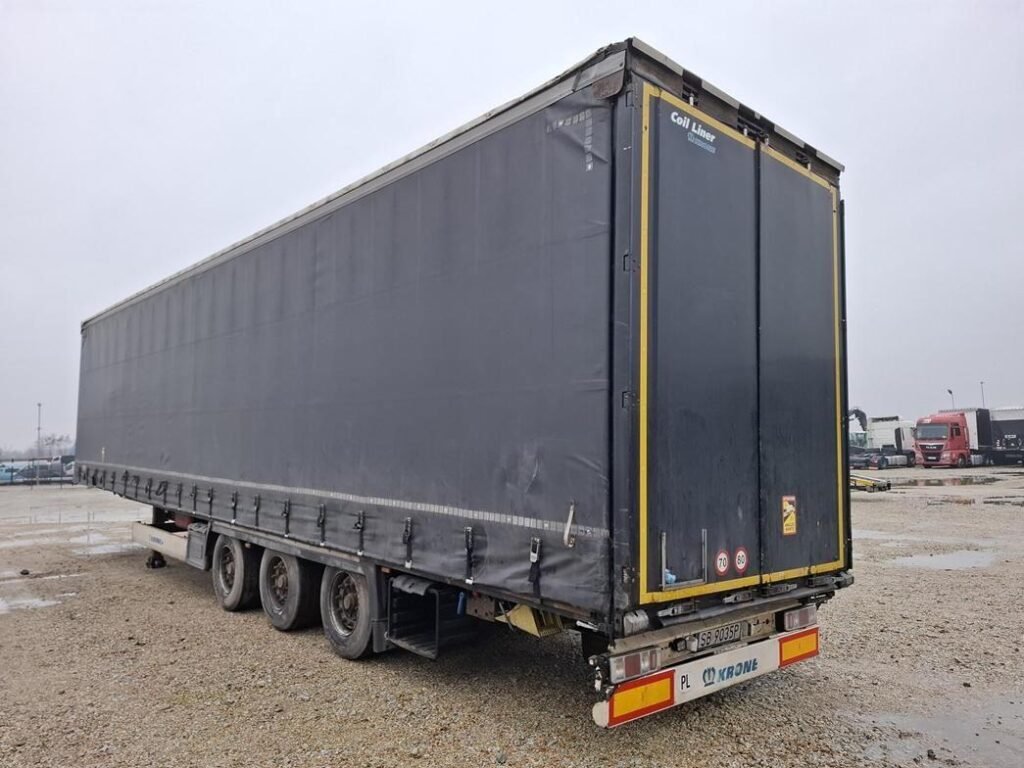

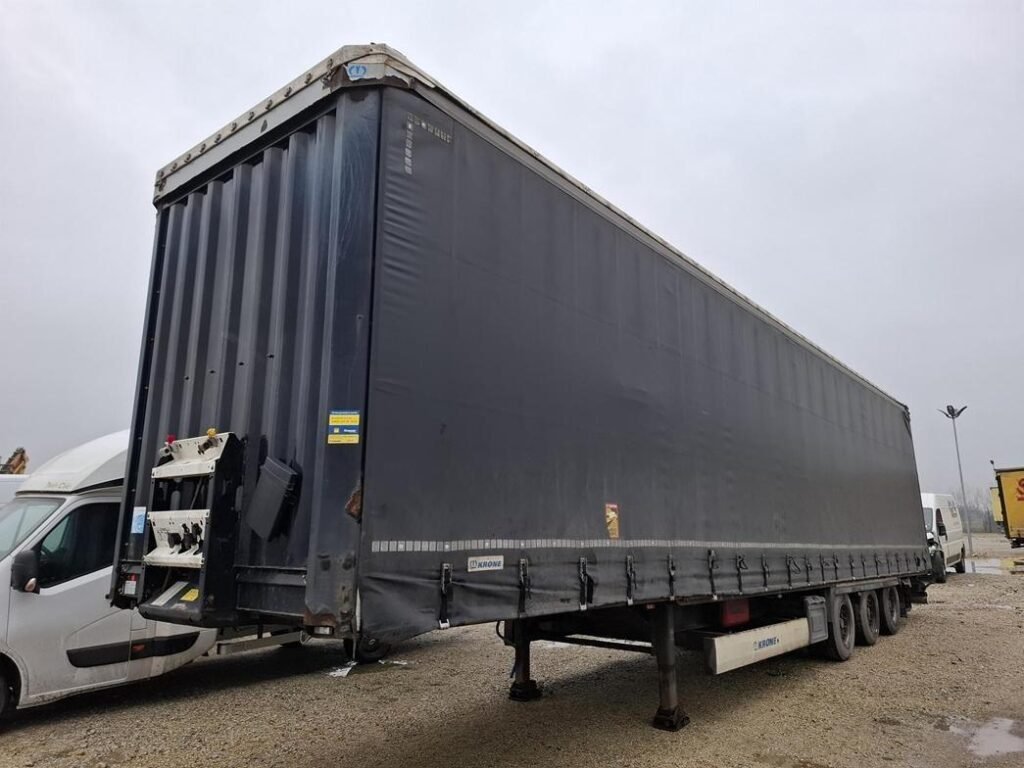

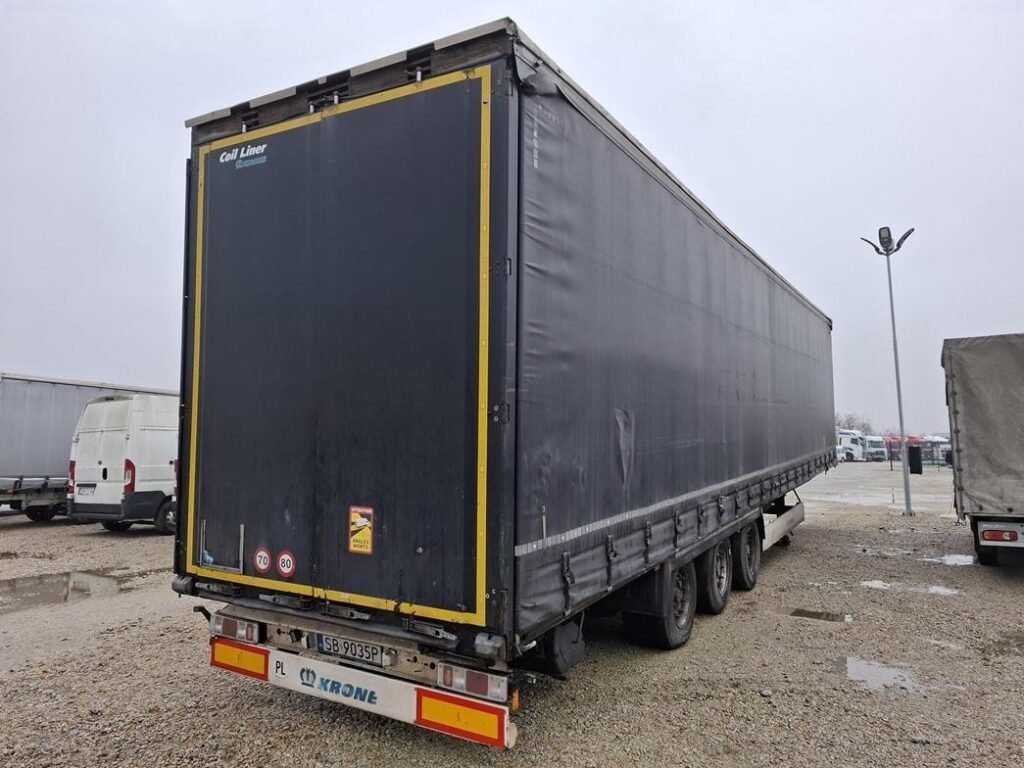

KRONE Semi-trailer

VEHICLE IDENTIFICATION DATA

• Vehicle type: Semi-trailer

• Brand: KRONE

• Model: SD 36.0t

• Version: eLG4-CS / 13.6 Mega

• VIN: WKESD000000677670

• Registration number: SB9035P

• Year of manufacture: 2015

• First registration date: 02.10.2015

• Technical inspection valid until: 11.01.2025

• Trailer type: Curtain-sider (tilt)

• Permissible gross weight / Unladen weight / Payload:
  39,000 kg / 7,570 kg / 28,430 kg

• Axle suspension: Air suspension

• Axle spacing: 1310 mm

• Color: Black

STANDARD EQUIPMENT

• EDSCHA Lite sliding roof (175), plastic arms

• Hydraulically liftable roof

• Rear retractable ladder

• Full-height double rear doors with double locks

• 3 pairs of central stanchions

• Aluminum slats (3 sets)

• Wooden slats (1 set)

• Removable rear underrun protection

• Side underrun protection

• Waterproof multilayer plywood floor, 30 mm, load rating 7 t

• Maintenance-free landing legs 2 × 12 t

• 2” kingpin

• Electronic braking system (EBS)

• WABCO braking system

TYRES INSTALLED

• Front left: WESTLAKE 435/50 R19.5 – tread 4.5 mm

• Front right: WESTLAKE 435/50 R19.5 – tread 7.0 mm

• 2nd axle left: JINYU 435/50 R19.5 – tread 7.0 mm

• 2nd axle right: JINYU 435/50 R19.5 – tread 5.5 mm

• 3rd axle left: JINYU 435/50 R19.5 – tread 9.0 mm

• 3rd axle right: JINYU 435/50 R19.5 – tread 7.5 mm

APPRAISER’S REMARKS – VEHICLE CONDITION

The vehicle was verified in the national vehicle history database.

Observed deviations from normal condition:

Interior:

• Numerous scratches on side wall panels

Exterior:

• Front left corner – scratches, corrosion spots

• Front right corner – scratches, corrosion spots

• Front wall – corrosion spots

• Curtain – torn material, traces of repairs, scratches

• Rear beam – deformation, corrosion spots

• Rear doors – dents, corrosion spots

• Toolbox cover – missing

• Right underrun protection – deformation, corrosion spots

The detailed condition is documented in photographic documentation.

TEST DRIVE

The vehicle has no self-propulsion; therefore, it was not possible to carry out a road test to assess the condition of the running gear and braking system.

DOCUMENTS

• Registration certificate: YES

DISCLAIMERS

• This report is for informational purposes only and does not constitute an offer or warranty.

• The valuation is not a full technical expertise and does not guarantee sale at the estimated value.

• The appraiser is not responsible for hidden defects (legal or physical).

• The inspection was visual only; no workshop diagnostics were performed.

• The year of manufacture was not independently verified and was accepted based on information provided by the client.

• The buyer is obliged to verify the actual condition of the vehicle before collection.
